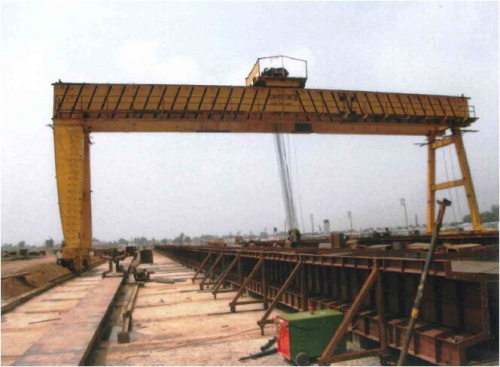

Goliath Crane

We are manufacturing, exporting and supplying Goliath Crane - off track type. Goliath Crane has a capacity up to 250 ton. It follows different crane mechanisms - m1, m2, m3, m4, m5, m6, m7, m8, and m9.  All TC certificates are provided for all the material used and the components of the Goliath Crane.

Specifications

• Class & Duty : i, ii, iii, IV with low, medium and heavy duty.
• Crane Mechanisms : m1,m2,m3,m4,m5,m6,m7,m8,m9.
• Design Standards : is:3177;is:800;is:807;is:3938
• Girder Construction : I-beam, fabricated I-beam, sq. Box type
• Span : up to 90 meters
• Lifts : up to 100 meters
• Speed : speed for all motions can be customized acc. To customer.
• Micro Speed : Acc. To customers demand may be 3 or more speeds for ht & ct.
• Brakes : em disc fail to safe or eht brakes for all motions of cranes.
• Type of Control : 110 v, ac
• Power Supply : 415 volts +- 10%, 3 phase, 50 cs ac.
• Method of Operation : pendant push button station, radio remote control.
• power supply to cut motion will be through festooned cable system
• Control panel containing all contractor overloads relays limit switches push button station etc. Shall be reputed make like l&ttcbch.

Material Of Construction

• Wheels : forged rolled steel fitted with antifriction roller bearing housed in l-type bearing housing.
• Rope Drum : cast steel fabricated out of rolled steel smilax type.
• Sheaves : cast steel fabricated out of rolled steel.
• Gear & Pinion : forged low medium carbon alloy steel.
• Hook : is 3815 - drop forged type swivel type hook plain shank typeramphorsen type.

Inspection And Testing Reports

• Radiography test on customer demand.
• Load testing at our site or at customers place acc. to mutual understanding.
• Speed test of ht & ct motions.
• Testing of electrical components.

Warranty Guarantee : All the equipments and components except electrical stands warranted for 12 months against errection and commissioning for manufacturing defects in the product and will be replaced against freight basis.
