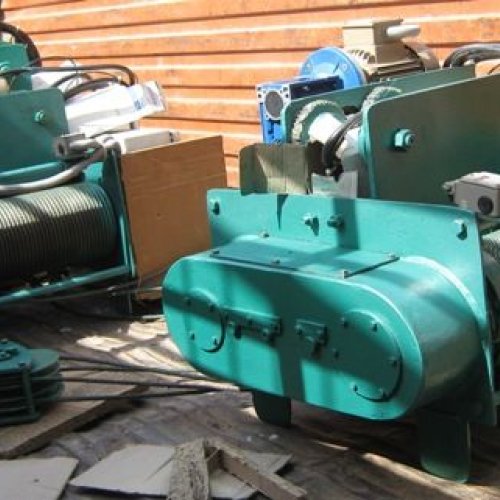

Electric Wire Rope Hoist


Electric Wire Rope Hoist

We are designers, manufacturers and suppliers of Electric Wire Rope Hoists. Hoists has standard capacity up to 20 ton and customized up to 50 t. All TC certificates are provided for all the material used and the components of the Electric Hoists. Specifications: Class & Duty : I, II, III, IV and Flame Proof. Mechanisms : M1, M2, M3, M4, M5, M6, M7, M8, M9. Design Standards : IS:3177;IS:800;IS:807;IS:3938 Suitable : I-beams, Fabricated I-beam, Sq. Box Section. Capacity : Up to 50 Tons. Lifts : 6 meter standard and up to 150 meters. M.H Speed : 2-3 m/min or custom. C.T Speed : 18-20 m/min or custom. Micro Speed : Using VVVF Drives in steps of 10%; 20% or custom. Brakes : EM disc type fail to safe with or without brake motors. Type of Control : 110 v, AC Power Supply : 415 volts +- 10%, 3 phase, 50 cs ac. Method of Operation : Pendant Push Button Station or Radio Remote Control. Power supply to cross travel motion will be through festooned cable system. Control panel containing all contractor, overloads relays, limit switches, push button station etc. shall be of reputed make like L&T, TCI and BCH. Material Of Construction Wheels : EN 9 Forged rolled steel fitted with anti-friction roller bearing in open reduction. Rope Drum : Fabricated out of rolled steel seamless pipe. Sheaves : Fabricated out of rolled steel. Gear & Pinion : EN-9 & EN-24-Forged low and medium carbon alloy steel. Hook : IS 3815 - Drop forged, Swivel hook- Plain shank type C type or Rampshorn type. Inspection And Testing Reports Radiography test on customer demand. Load testing at our site or at customers place according to mutual understanding. Speed test of HT & CT motions. Testing of electrical components. Warranty Guarantee : All the equipments and components except electrical stands warranted for 12 months against manufacturing defects in the product. Prices 1 T : 55 K 2 T : 70 K 3 T : 95 K 5 T : 1.3 L 7.5 T : 1.8 L 10 T : 2.3 L 15 T : 5.0 Lack Taxes: 5.2% Pack: 3%


Features

Price of 1 Ton Capacity Hoist Rs. 55,000
Price of 2 Ton Capacity Hoist Rs. 70,000
Price of 3 Ton Capacity Hoist Rs. 95,000
Price of 5 Ton Capacity Hoist Rs. 1,30,000
Price of 7.5 Ton Capacity Hoist Rs.1,80,000
Price of 10 Ton Capacity Hoist Rs. 2,30,000
Price of 15 Ton Capacity Hoist Rs. 5,00,000
Price of 5 Ton Capacity Bi rail Crab Trolley Rs. 1,80,000
Price of 7.5 Ton Capacity Bi rail Crab Trolley Rs. 2,50,000
Price of 10 Ton Capacity Bi rail Crab Trolley Rs. 5,00,000
Price of 15 Ton Capacity Bi rail Crab Trolley Rs. 9,00,000
Price of 20 Ton Capacity Bi rail Crab Trolley Rs. 12,00,000

Additional Information

Min. Order Quantity 1 Set(s)
Payment Terms L/C, T/T
Delivery Time 1 Month
Packaging Details Wooden Cartoon Boxes charged extra @ 5 %
