Industrial Cranes

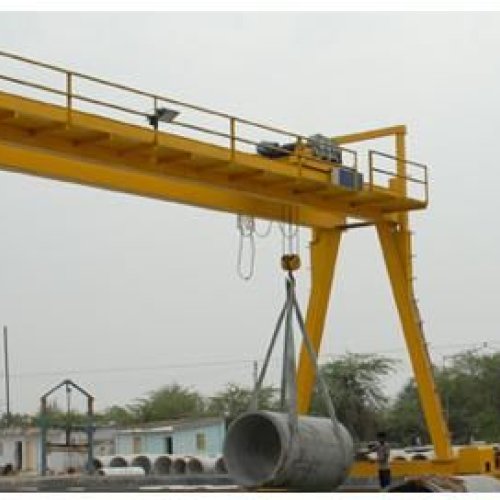

We are a noted Manufacturer, Exporter and Supplier of Gantry Crane in India. This Gantry Crane is sold by a brand name called PARYOG. The capacity for Gantry Crane is nearly up to 200 tons. These Gantry Cranes are available with track. Easy to operate, these Gantry Cranes are apt for indoor as well as outdoor operations.

Specifications

• Capacity : up to 200 ton.
• Class & Duty : i, ii, iii, iv with low, medium and heavy duty.
• Crane Mechanisms : m1,m2,m3,m4,m5,m6,m7,m8,m9.
• Design standards : is:3177;is:800;is:807;is:3938
• Girder Construction : i-beam fabricated i-beam, sq. Box type- single double girder.
• Span : up to 40 meters
• Lifts : up to 100 meters
• Speeds : speed for all motions can be customized acc. To customer.
• Micro Speeds : acc. To customer requirements may be 3 or more speeds.
• Brakes : em disc fail to safe or eht brakes for all motions of cranes.
• Type of Control : 110 v, ac
• Power Supply : 415 volts +- 10%, 3 phase, 50 cs ac.
• Method of Operation : pendant push button station, radio remote control.
• Maintenance platform for the cross travel will be provided on customer demand on one or both sides.
• Cable realign drum is provided for collecting the long travel cable.
• Power feeding will be at one end of the dsl
• Power supply to c.t motion will be through festooned cable system
• Control panel containing all contractor overloads relays limit switches push button station etc. shall be reputed make like l&ttcbch.

Material Of Construction

• Wheels : forged rolled steel fitted with antifriction roller bearing housed in l-type bearing housing.
• Rope Drum : cast steel fabricated out of rolled steel smilax type.
• Sheaves : cast steel fabricated out of rolled steel.
• Gear & Pinion : forged low medium carbon alloy steel.
• Hook : is 3815 - drop forged type swivel type hook plain shank typeramphorsen type.
• inspection and testing reports
• Tc certificates are provided for all the material used and the components of the crane.
• Radiography test on customer demand.
• Load testing at our site or at customers place acc. To mitual understanding.
• Speed test of all motions.
• Testing of electrical components.

Warranty Guarantee : All the equipments and components except electrical stands warranted for 12 months against errection and commissioning for manufacturing defects in the product and will be replaced against freight basis.

We are one of the best Manufacturers, Exporters and Suppliers of Double Girder EOT Crane in India. The girder Construction of Double Girder EOT Crane is I-beam, Fabricated I-beam, and Sq. Box Type. It has a capacity up to 300 ton. Double Girder EOT Crane is quite easy to operate, install and repair. Please contact us for a bulk delivery of Double Girder EOT Cranes.

Specifications

• Trolley Numbers : Different capacity trolleys can be installed as above and below trolleys on same girders.

• Capacity: Up to 300 Ton.
• Class & Duty: I, ii, iii, iv with Low, Medium and Heavy Duty.
• Crane Mechanisms : M1,M2,M3,M4,M5,M6,M7,M8,M9.
• Design Standards : Is:3177;is:800;is:807;is:3938
• Girder Construction : I-beam, Fabricated I-beam, Sq. Box Type
• Span : up to 80 Meters
• Lifts : up to 100 Meters
• Speeds : Speed for all Motions Can Be Customized Acc. to Customer.
• Micro Speeds : Acc. to Customer Requirements May Be 3 or More Speeds.
• Brakes : Em Disc Fail to Safe or Eht Brakes for all Motions of Cranes.
• Above 20 Ton Two Brakes Will Be Provided for Hoisting Motion
• Type of Control : 110 V, Ac
• Power Supply : 415 Volts +- 10%, 3 Phase, 50 Cs Ac.

Method of Operation

• Cabin, Pendant Push Button Station, Radio Remote Control.
• Maintenance Platform for L.t Drive are Provided with the Crane and for the Cross Travel Will Be Provided On Customer Demand.
• Power Feeding Will Be Through Solid Bush Bar Dsl.
• Power Supply to C.t Motion Will Be Through Festooned Cable System with Or Without Trolley System.
• Control Panel Containing all Contractor Overload Relays Limit Switches Push Button Station Etc. Shall Be Reputed Make like L&ttcbch.

Material Of Construction

• Rope Drum : Cast Steel Fabricated Out of Rolled Steel smilax Type.
• Sheaves : Cast Steel Fabricated Out of Rolled Steel.
• Gear & Pinion : Forged Low Medium Carbon Alloy Steel.
• Wheels : Forged Rolled Steel Fitted with Antifriction Roller Bearing Housed in L-type Bearing Housing.
• Hook : is 3815 - Drop Forged Type Swivel Type Hook Plain Shank Typeramphorsen Type.
• Wire Rope : - Usha Martin Make of Suitable Construction and Safety Factor.

Inspection And Testing Reports

• Radiography test on customer demand.
• Load testing at our site or at customers place acc. to mutual understanding.
• Speed test of ht & ct motions.
• Testing of electrical components.

Warranty Guarantee : All the equipments and components except electrical stands warranted for 12 months against errection and commissioning for manufacturing defects in the product and will be replaced against freight basis.

We are manufacturing, exporting and supplying Goliath Crane - off track type. Goliath Crane has a capacity up to 250 ton. It follows different crane mechanisms - m1, m2, m3, m4, m5, m6, m7, m8, and m9.  All TC certificates are provided for all the material used and the components of the Goliath Crane.

Specifications

• Class & Duty : i, ii, iii, IV with low, medium and heavy duty.
• Crane Mechanisms : m1,m2,m3,m4,m5,m6,m7,m8,m9.
• Design Standards : is:3177;is:800;is:807;is:3938
• Girder Construction : I-beam, fabricated I-beam, sq. Box type
• Span : up to 90 meters
• Lifts : up to 100 meters
• Speed : speed for all motions can be customized acc. To customer.
• Micro Speed : Acc. To customers demand may be 3 or more speeds for ht & ct.
• Brakes : em disc fail to safe or eht brakes for all motions of cranes.
• Type of Control : 110 v, ac
• Power Supply : 415 volts +- 10%, 3 phase, 50 cs ac.
• Method of Operation : pendant push button station, radio remote control.
• power supply to cut motion will be through festooned cable system
• Control panel containing all contractor overloads relays limit switches push button station etc. Shall be reputed make like l&ttcbch.

Material Of Construction

• Wheels : forged rolled steel fitted with antifriction roller bearing housed in l-type bearing housing.
• Rope Drum : cast steel fabricated out of rolled steel smilax type.
• Sheaves : cast steel fabricated out of rolled steel.
• Gear & Pinion : forged low medium carbon alloy steel.
• Hook : is 3815 - drop forged type swivel type hook plain shank typeramphorsen type.

Inspection And Testing Reports

• Radiography test on customer demand.
• Load testing at our site or at customers place acc. to mutual understanding.
• Speed test of ht & ct motions.
• Testing of electrical components.

Warranty Guarantee : All the equipments and components except electrical stands warranted for 12 months against errection and commissioning for manufacturing defects in the product and will be replaced against freight basis.

We have established ourselves as a noted Manufacturer, Exporter and Supplier of Single Girder EOT Crane in India.  It has a capacity of up to 15 ton. Maintenance platform for L.T Drive is provided with the Single Girder EOT Crane and for the cross travel will be provided on customer demand. Please contact us for making a bulk delivery of Single Girder EOT Cranes.

Specifications

• Class & Duty : I, II, III, IV with Low, Medium and Heavy Duty.
• Crane Mechanisms : M1,M2,M3,M4,M5,M6,M7,M8,M9.
• Design Standards : IS:3177;IS:800;IS:807;IS:3938
• Girder Construction : I-Beam, Fabricated I-Beam, Sq. Box Type
• Span : Upton 20 meters
• Lifts : Upton 25 meters
• Speed : Speed for all motions can be customized acc. to customer.
• Micro Speeds : Acc. to customer requirements may be 3 or more speeds.
• Brakes : EM Disc Fail to Safe or EHT brakes for all motions of cranes.
• Type of Control : 110 V, AC
• Power Supply : 415 Volts +- 10%, 3 Phase, 50 CS AC.

Method of operation

• Pendant Push button station, Radio Remote Control.
• Power feeding will be at one end of the DSL
• Power Supply to C.T motion will be through Festooned Cable system
• Control Panel containing all contractor overloads relays limit switches push button station etc. shall be reputed make like L&TTCBCH.

Material Of Construction

• Wheels : Forged rolled steel fitted with antifriction roller bearing housed in L-Type bearing housing.
• Rope Drum : Cast steel fabricated out of rolled steel Smilax type.
• Sheaves : Cast steel fabricated out of rolled steel.
• Gear & Pinion : Forged low medium carbon alloy steel.
• Hook : IS 3815 - Drop forged type Swivel type Hook Plain Shank
• Type : Ramphorsen Type.

Inspection And Testing Reports

• Radiography test on customer demand.
• Load testing at our site or at customers place acc. to mutual understanding.
• Speed test of ht & ct motions.
• Testing of electrical components.

Warranty Guarantee : All the equipments and components except electrical stands warranted for 12 months against errection and commissioning for manufacturing defects in the product and will be replaced against freight basis

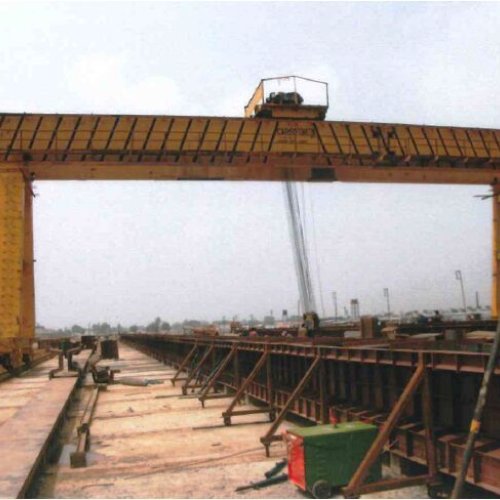

We are manufacturing, exporting and supplying Deck-Leg Gantry/Goliath Cranes. Deck-Leg Gantry crane is similar to a normal Gantry cranes in spite of height difference in Legs. Specifications Class & Duty : I, II, III, IV with low, medium and heavy duty. Crane Mechanisms : M1,M2,M3,M4,M5,M6,M7,M8,M9. Design Standards : IS:3177;IS:800;IS:807;IS:3938 Girder Construction : I-beam, Fabricated I-beam, Sq. Box, Trapezoidal Span : up to 90 meters Lifts : 100 meters Speed : Speed for all motions can be customized acc. To customer. Micro Speed : Acc. to customers demand may be 3 or more speeds for ht & ct. Brakes : EM disc fail to safe or E.H.T/Disc brakes for all motions of cranes. Type of Control : 110 v, ac Power Supply : 415 volts +- 10%, 3 phase, 50 cs ac. Method of Operation : pendant push button station, radio remote control. Power supply to C.T motion will be through festooned cable system. Control panel containing all contractor overloads relays limit switches push button station etc. Shall be reputed make like L&T/TC/BCH. Material Of Construction Wheels : EN 9 Forged rolled steel fitted with anti-friction roller bearing housed in L-type bearing housing. Rope Drum : Fabricated out of rolled steel seamless pipe. Sheaves : Fabricated out of rolled steel. Gear & Pinion : forged low medium carbon alloy steel. Hook : IS 3815 - Drop Forged, Swivel Plain shank C type or Rampshorn type. Inspection And Testing Reports Radiography test on customer demand. Load testing at our site or at customers place acc. to mutual understanding. Speed test of ht & ct motions. Testing of electrical components. Warranty Guarantee : All the equipments and components except electrical stands warranted for 12 months against errection and commissioning for manufacturing defects in the product and will be replaced against freight

JIB Cranes are suitably used for workstation jobs and as maintenance cranes. These are mainly utilized in railway, automobile, pharma, tool rooms, machine shop departments to part the work-cycle and loads of E.O.T Cranes. The lifting capacity ranges from 0.5 Ton to 15 Tons. Application sector gives span range from 2-15 meters and lifts up to 10 meters. Depending on the supports and space availability Jib Cranes are categorized as follows: a FLOOR MOUNTED 1. Free Standing Jib Crane 2. Double Boom Jib Crane 3. Mast Jib Crane 4. Free Standing Workstation Jib Crane 5. Free Standing Articulating Jib Crane 6. Portable Jib Crane 7. Foundation less Jib Crane b WALL OR COLUMN MOUNTED 1. Wall Cantilever Jib Crane 2. Wall Bracket Jib Crane 3. Wall Cantilever Work Station Jib Crane 4. Wall Mounted Articulating Jib Crane 5. Ceiling Mounted Articulating Jib Crane 6. Wall Travelling Jib Crane RBS Cranes has wide experience of custom made Jib Cranes, which we can supply in very short time of period and rare economical prices.

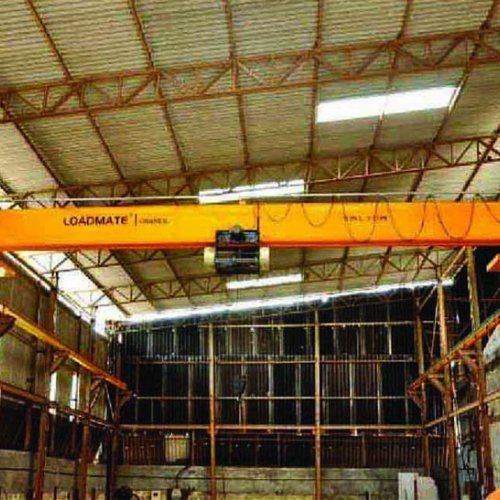

Equipped with state of the art gantry, lifting trolley, sound mechanism, and electric control system, our HOT Cranes are the best in market. We make sure that the offered lot complies with the stated quality norms, thus check the product quality on several stages. Capitalizing on an efficient industrial network, our organization has made coalitions with numerous reputed logistics solution sources. Thus, we can ensure on time distribution of consignments.
